FC6300 Formula Control Bench Scale

$8,185.00$8,545.00

Achieve Total Control of Your Formulas

What would it be like to be in total control? Imagine saving at least 2.1% of your yearly ingredient costs. What would that be worth to you? having an extra supervisor watching over your employees’ shoulders monitoring and controlling the formulation process. What effect would that have on your product consistency and production efficiency?

Picture having an extra supervisor watching over your employees’ shoulders monitoring and controlling the formulation process. What effect would that have on your product consistency and production efficiency?

Doran’s FC6300 Formula Control System puts you in total control and can pay for itself in four months or less.

Field-Proven Ingredient Savings
In today’s competitive marketplace, reducing production costs is a sure path to greater profits. Doran’s Formula Control has been guiding production plants along that path with ingredient savings of at least 2.1%—even more. Combine lower ingredient costs with the elimination of the money wasted on bad batches, and you can understand why successful companies are investing in the FC6300 Formula Control System.

Take a look at the savings one company experienced with the FC6300. This plant realized that improving the performance of their formula scaling could lead to a significant impact on profitability. Additionally they were averaging one bad batch a week due to errors that were traced back to the scaling process. They turned to Doran Scales to reduce costs from wasted ingredients and bad batches—the solution was the FC6300 Formula Control System. Return on investment due to ingredient cost savings was achieved in just four months, and the net one-year effect on profit margin was $27,068.71. It’s no wonder that plant managers at this company’s other location suddenly became interested in the FC6300 Formula Control System.

Consistent Batches—Guaranteed!
Reduction of ingredient costs is easy to see, but the costs associated with bad batches are often overlooked. Like a dripping faucet, those bad batches can gradually drain your plant’s profits. Production downtime to clean production lines and discard the bad batch, along with cost of wasted ingredients, can add up. Our field studies show that bad batches cost a company $837 per incident. With guaranteed consistent batches, your plant will run more efficiently, adding to your profitably.

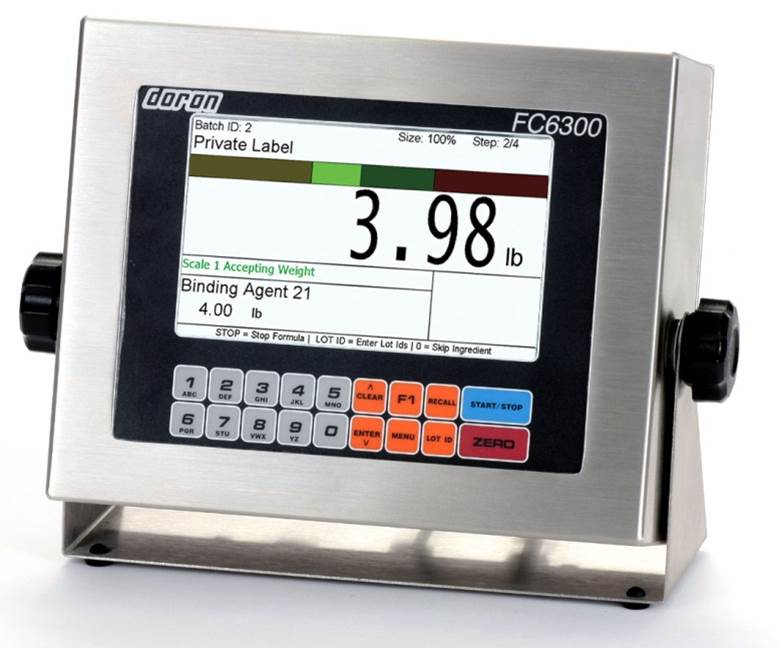

Because the system prompts the user through the formula, the correct ingredients are accurately scaled every time. Each ingredient of the formula is weighed within a tolerance that you define. The color-coded Accu-Track display on the bright LCD screen ensures that added ingredients are within those tolerances. Each step of the formula is clearly labeled with batch ID, batch name, the step number, ingredient name, target weight, and actual weight. Accurate scaling can be achieved with or without experienced production employees.

Ensures Employee Accountability

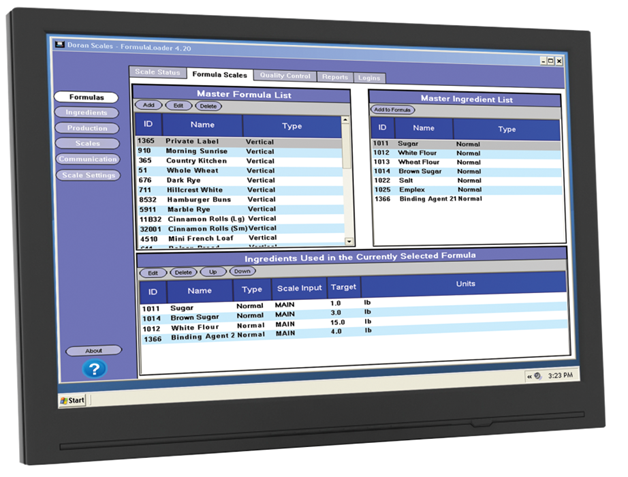

Formula Loader is a standard component of the FC6300 Formula Control system. This Windows™-compatible software is used to configure formulas as well as to provide production reports. Standard Formula Loader reports can be used to evaluate scale operator efficiency and ingredient usage. Using scale operator ID’s, the FC6300 tracks when a user logs in and out of the scale. Management can easily determine how long the scale operators are taking to prepare each formula and how accurately it was done. It’s like having the plant manager watching over your employees’ shoulders 24/7.

Fast, Accurate, and Easy Lot Traceability
Scaled formulas are saved as a digital record, far more accurate than the typical handwritten records used on most plant floors today. The digital format makes searching and analyzing production data fast and accurate. With a click of a mouse button, all batch data of a specific lot ID can be retrieved.

Additional information

Model #

FC63100SP/1818, FC63150SP/1818, FC63250SP/1818, FC63500SP/1818, FC63100SP/1824, FC63150SP/1824, FC63250SP/1824, FC63500SP/1824, FC63100SP/2424, FC63150SP/2424, FC63250SP/2424, FC63500SP/2424

Technical Specs

Model #Lb CapacityKg CapacityOz CapacityPlatformShipping Box 1Shipping Box 2Shipping Box 3
FC63100SP/1818100 x 0.1 lb45 x 5g1600 x 0.2 oz18 x 1867 lbs, 28 x 28 x 9"60 lbs, 14 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63150SP/1818150 x 0.1 lb68 x 5g2400 x 0.2 oz18 x 1867 lbs, 28 x 28 x 9"60 lbs, 14 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63250SP/1818250 x 0.02 lb113 x 10g4000 x 0.5 oz18 x 1867 lbs, 28 x 28 x 9"60 lbs, 14 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63500SP/1818500 x 0.05 lb227 x 20g8000 x 1 oz18 x 1867 lbs, 28 x 28 x 9"60 lbs, 14 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63100SP/1824100 x 0.1 lb45 x 5g1600 x 0.2 oz18 x 2469 lbs, 28 x 28 x 9"60 lbs, 14 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63150SP/1824150 x 0.1 lb68 x 5g2400 x 0.2 oz18 x 2469 lbs, 28 x 28 x 9"60 lbs, 14 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63250SP/1824250 x 0.02 lb113 x 10g4000 x 0.5 oz18 x 2469 lbs, 28 x 28 x 9"60 lbs, 14 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63500SP/1824500 x 0.05 lb227 x 20g8000 x 1 oz18 x 2469 lbs, 28 x 28 x 9"60 lbs, 14 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63100SP/2424100 x 0.1 lb45 x 5g1600 x 0.2 oz24 x 2485 lbs, 28 x 28 x 9"60 lbs, 15 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63150SP/2424150 x 0.1 lb68 x 5g2400 x 0.2 oz24 x 2485 lbs, 28 x 28 x 9"60 lbs, 15 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63250SP/2424250 x 0.02 lb113 x 10g4000 x 0.5 oz24 x 2485 lbs, 28 x 28 x 9"60 lbs, 15 x 15 x 28"18 lbs, 16 x 16 x 16"
FC63500SP/2424500 x 0.05 lb227 x 20g8000 x 1 oz24 x 2485 lbs, 28 x 28 x 9"60 lbs, 15 x 15 x 28"18 lbs, 16 x 16 x 16"

Product Brochure

FC6300-Brochure

Videos

Features & Options

  • 100-500lb capacities available
  • Fast, Accurate & Easy Lot Traceability
  • 2nd Scale Base Option
  • Digital Weigh Indicator & Formula  Loader Windows based software option
  • Communication & Data Output Options including Wireless Ethernet Network Data Communications
  • Printer, Labels & Paper Options
  • All scale systems include a 20″ fixed height Atlas Column. Other base sizes and capacities are available upon request.
  • IP65 Rated Heavy Duty Barcode Scanner & Options
  • 30″ or 40″ Column Upgrade
  • Weatherproof Ethernet Junction Box
  • Waterproof Wireless PC Keyboard
  • 2 year warranty
