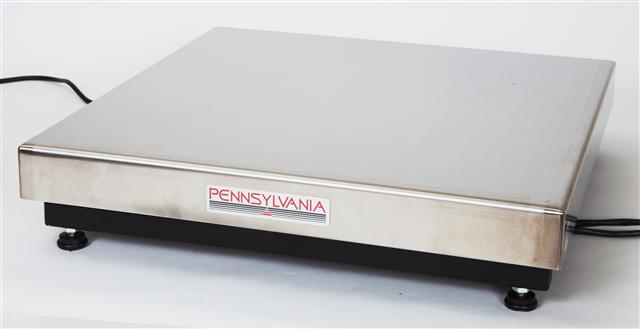

6400 Scale Base

$1,040.00$1,776.00

The Pennsylvania Scale 6400 series is designed for rough use and excellent load cell output for parts counting or straight weighing applications.

Open frame design easily adapts to a wide range of OEM applications

CUSTOM SIZES AVAILABLE!

The 6400 Scale is sold as a Factory Calibrated Package that includes the platform of your choice (Size & Capacity) and the 7600 Indicator.

The 6400 base can be purchased separately, but then the base and indicator will need to be properly calibrated on-site.





Additional information

Weight N/A
Dimensions N/A
Type of Steel

Mild Steel (MS), Stainless Steel (SS)

Capacity & Platform Size

6400-100-1818, 6400-100-1824, 6400-100-2424, 6400-250-1818, 6400-250-1824, 6400-250-2424, 6400-500-1818, 6400-500-1824, 6400-500-2424, 6400-500-2430, 6400-1000-1818, 6400-1000-1824, 6400-1000-2424, 6400-1000-2430

Technical Specs

Model #Type of SteelCapacityPlatform SizeIndicator Included in Factory Calibrated PackageShipping Weight
M6400-100-1818Mild Steel 100 x 0.02 lb/45.36 x 0.01 kg*18 x 18 x 5"7600 Indicator70 Lbs
M6400-100-1824Mild Steel 100 x 0.02 lb/45.36 x 0.01 kg*18 x 24 x 5"7600 Indicator75Lbs
M6400-100-2424Mild Steel 100 x 0.02 lb/45.36 x 0.01 kg*24 x 24 x 5"7600 Indicator90 Lbs
M6400-250-1818Mild Steel 250 x 0.05 lb/115 x 0.02 kg18 x 18 x 5"7600 Indicator70 Lbs
M6400-250-1824Mild Steel 250 x 0.05 lb/115 x 0.02 kg18 x 24 x 5"7600 Indicator75 Lbs
M6400-250-2424Mild Steel 250 x 0.05 lb/115 x 0.02 kg 24 x 24 x 5"7600 Indicator90Lbs
M6400-500-1818Mild Steel 500 x 0.1 lb/250 x 0.05 kg18 x 18 x 5"7600 Indicator70 Lbs
M6400-500-1824Mild Steel 500 x 0.1 lb/250 x 0.05 kg18 x 24 x 5"7600 Indicator75 Lbs
M6400-500-2424Mild Steel 500 x 0.1 lb/250 x 0.05 kg 24 x 24 x 5"7600 Indicator90 Lbs
M6400-500-2430Mild Steel 500 x 0.1 lb/250 x 0.05 kg24 x 30 x 5"7600 Indicator100 Lbs
M6400-1000-1818Mild Steel 1000 x 0.2 lb/500 x 0.1 kg18 x 18 x 5"7600 Indicator70Lbs
M6400-1000-1824Mild Steel 1000 x 0.2 lb/500 x 0.1 kg18 x 24 x 5"7600 Indicator75Lbs
M6400-1000-2424Mild Steel 1000 x 0.2 lb/500 x 0.1 kg24 x 24 x 5"7600 Indicator90Lbs
M6400-1000-2430Mild Steel 1000 x 0.2 lb/500 x 0.1 kg24 x 30 x 5"7600 Indicator100 Lbs
SS6400-100-1818Stainless Steel 100 x 0.02 lb/45.36 x 0.01 kg*18 x 18 x 5"7600 Indicator70 Lbs
SS6400-100-1824Stainless Steel 100 x 0.02 lb/45.36 x 0.01 kg*18 x 24 x 5"7600 Indicator705Lbs
SS6400-100-2424Stainless Steel 100 x 0.02 lb/45.36 x 0.01 kg*24 x 24 x 5"7600 Indicator90 Lbs
SS6400-100-2430Stainless Steel 100 x 0.02 lb/45.36 x 0.01 kg*24 x 30 x 5"7600 Indicator100 Lbs
SS6400-250-1818Stainless Steel 250 x 0.05 lb/115 x 0.02 kg18 x 18 x 5"7600 Indicator70 Lbs
SS6400-250-1824Stainless Steel 250 x 0.05 lb/115 x 0.02 kg18 x 24 x 5"7600 Indicator75 Lbs
SS6400-250-2424Stainless Steel250 x 0.05 lb/115 x 0.02 kg24 x 24 x 5"7600 Indicator90 Lbs
SS6400-250-2430Stainless Steel 250 x 0.05 lb/115 x 0.02 kg24 x 30 x 5"7600 Indicator100 Lbs
SS6400-500-1818Stainless Steel 500 x 0.1 lb/250 x 0.05 kg18 x 18 x 5"7600 Indicator70 Lbs
SS6400-500-1824Stainless Steel 500 x 0.1 lb/250 x 0.05 kg18 x 24 x 5"7600 Indicator75 Lbs
SS6400-500-2424Stainless Steel 500 x 0.1 lb/250 x 0.05 kg24 x 24 x 5"7600 Indicator90 Lbs
SS6400-500-2430Stainless Steel500 x 0.1 lb/250 x 0.05 kg24 x 30 x 5"7600 Indicator100 Lbs
SS6400-1000-1818Stainless Steel 1000 x 0.2 lb/500 x 0.1 kg18 x 18 x 5"7600 Indicator70 Lbs
SS6400-1000-1824Stainless Steel 1000 x 0.2 lb/500 x 0.1 kg18 x 24 x 5"7600 Indicator75 Lbs
SS6400-1000-2424Stainless Steel 1000 x 0.2 lb/500 x 0.1 kg24 x 24 x 5"7600 Indicator90 Lbs
SS6400-1000-2430Stainless Steel 1000 x 0.2 lb/500 x 0.1 kg24 x 30 x 5"7600 Indicator100 Lbs

Product Brochure

6400 Brochure

Additional Technical Information

6400 Manual
Tedea Load Cell Specs
7600 Indicator Manual
7600 Indicator Manual

Features & Options

  • Will Factory Match to any PA Platform when ordered as a system
  • Standard platform sizes 18 x 18″, 18 x 24″, 24 x 24″, 24 x 30″ and 30 x 30″ – Custom Sizes Available
  • Capacities: 100 lbs, 250 lbs, 500 lbs and 1000 lbs
  • Weighs in Pounds & Kilograms
  • Heavy duty construction for sustained accuracy in rugged industrial applications
  • Mild steel units:  Premium black powder coat finish resists most corrosives
  • Stainless steel units:  12 gauge top plate and heavy duty construction 304 SS
  • NTEP and Canadian Weights & measures approved to 5000 divisions (except 100 lbs model & 24 x 30″)
  • 10′ cable with Quick Disconnect Free matching to any Pennsylvania Scale indicator when ordered together
  • Environmentally sealed ‘brick’ style load cell suitable for all environments
  • 2 Year Limited Warranty & manufactured in Lancaster, Pennsylvania
