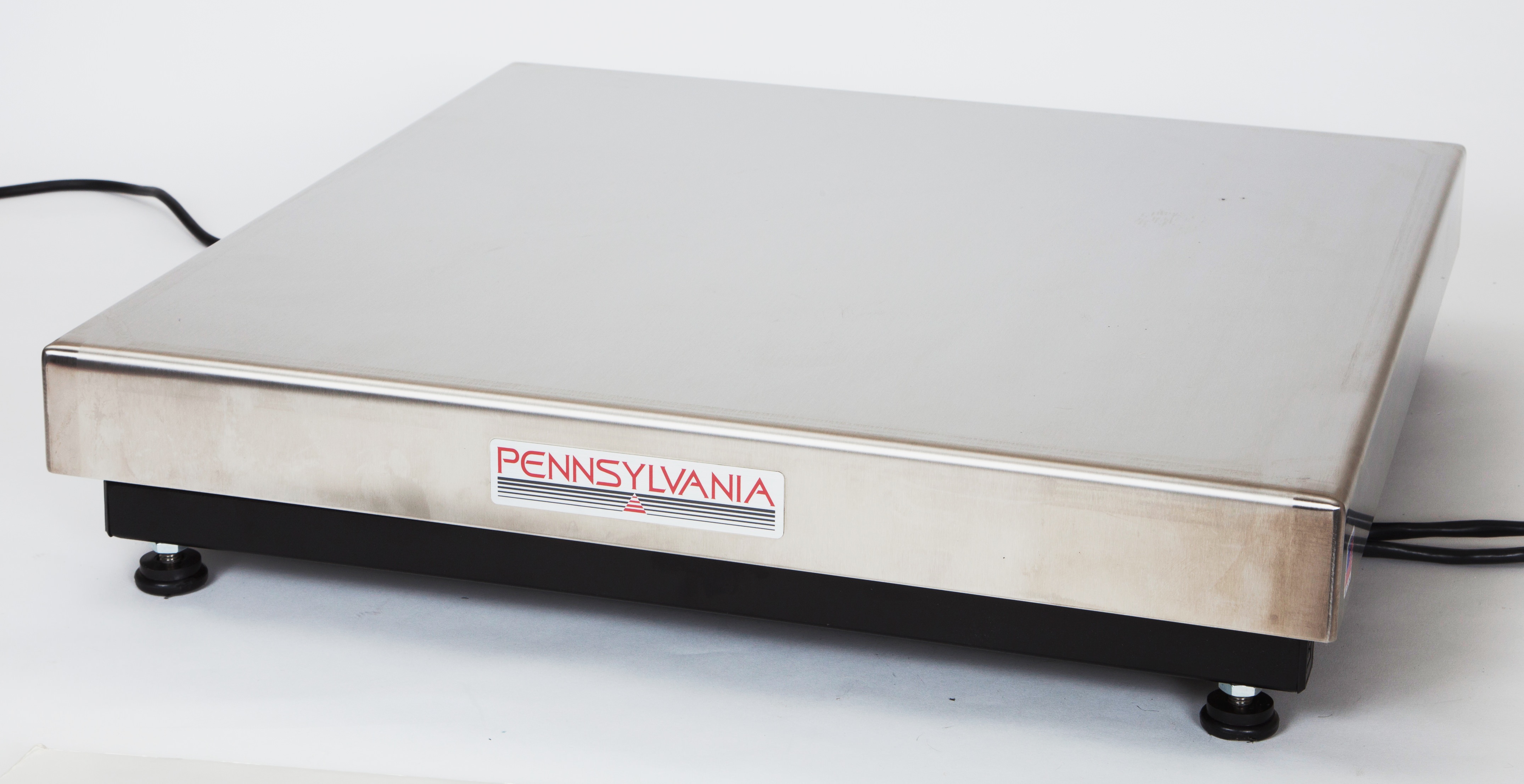

7300 Heavy Duty Bench Scale

$775.00 $640.00

The 7300 Heavy Duty Bench scale is a superb foundation for a stand-alone scale or weighing system!

Designed for long life and sustained accuracy in the most demanding situation

  • Rugged cast construction
  • Weighing in choice of (2) weight units
  • Equipped for remote displays or standard RS-232 output.
  • Compatible with most shipping manifest systems such as UPS Worldship ™ or FedEX.



Additional information

Weight 25 lbs
Dimensions 21 x 23 x 7 in
Model #

7300-2, 7300-5, 7300-10, 7300-20, 7300-50, 7300-100, 7300-150, 7300-200

Technical Specs

Model #DescriptionCapacityPlatter SizeUnit of MeasureBatteryDimensionsShipping Weight
7300-22 lb Capacity-Aluminum Platform-NTEP2 x 0.0002 lb; 907.2 x 0.1 g8"(w) x 8"(d) lb, gAC/DC12.25 (D) x 14.2521 lbs
7300-55 lb Capacity-Aluminum Platform-NTEP5 x 0.0005 lb; 2268 x 0.2 g8"(w) x 8"(d) lb, gAC/DC12.25 (D) x 14.2521 lbs
7300-1010 lb Capacity-SS Platform-NTEP10 x 0.001 lb; 4536 x 0.5 g12"(w) x 14"(d) lb, gAC/DC12.25 (D) x 14.2521 lbs
7300-2020 lb Capacity-SS Platform-NTEP20 x 0.002 lb; 9.072 x 0.001 kg12"(w) x 14"(d) lb, gAC/DC12.25 (D) x 14.2521 lbs
7300-5050 lb Capacity-SS Platform-NTEP50 x 0.005 lb; 22.68 x 0.005 kg12"(w) x 14"(d) lb, gAC/DC12.25 (D) x 14.2521 lbs
7300-100100 lb Capacity-SS Platform-NTEP100 x 0.01 lb; 45.36 x 0.005 kg12"(w) x 14"(d) lb, gAC/DC12.25 (D) x 14.2521 lbs
7300-150150 lb Capacity-SS Platform-NTEP150 x 0.02 lb; 68.04 x 0.01 kg12"(w) x 14"(d) lb, gAC/DC12.25 (D) x 14.2521 lbs
7300-200200 lb Capacity-SS Platform-NTEP200 x 0.02 lb; 90.72 x 0.01 kg12"(w) x 14"(d) lb, gAC/DC12.25 (D) x 14.2521 lbs

Product Brochure

7300 Scale

Additional Technical Information

Manual
Ethernet Option
Lantronic-XPort
Analog Setup
Set Point Option
Scaime Load Cell Specs

Features & Options

  • NTEP certified
  • 8 capacities-from 2-200lbs

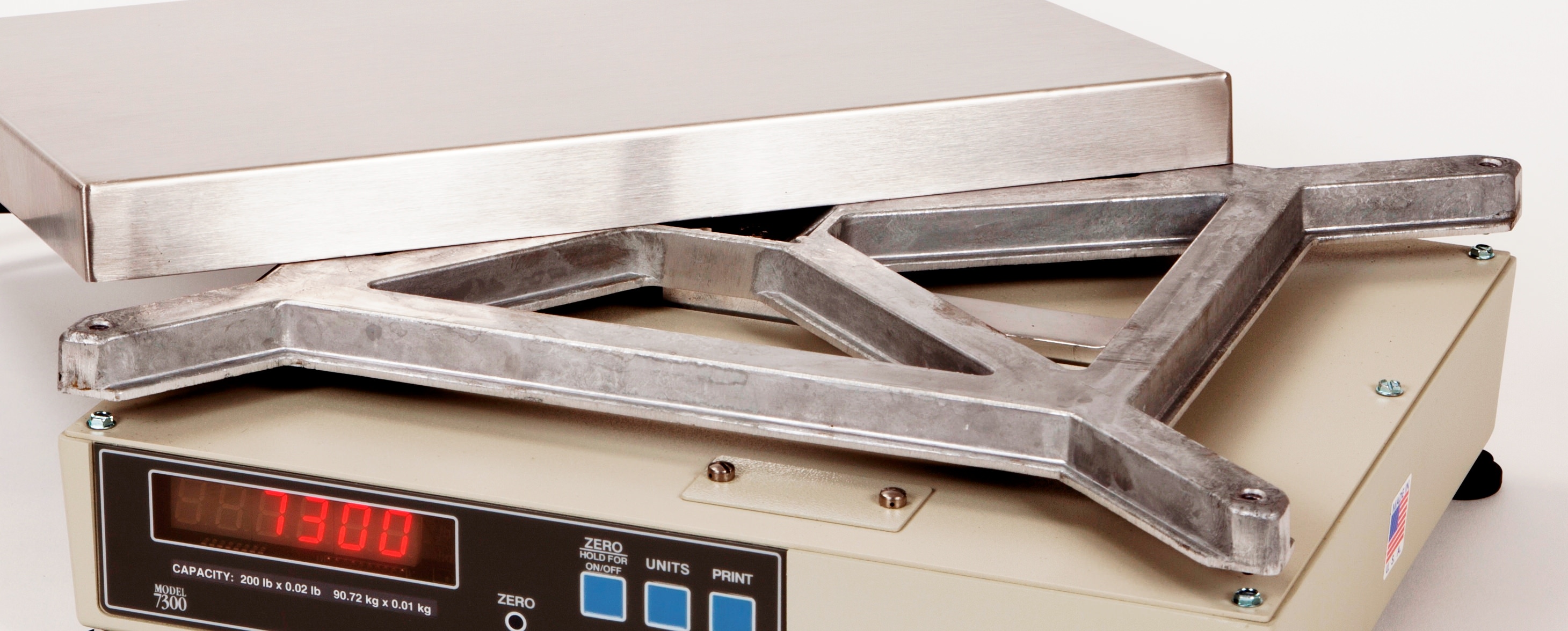

  • Extra rugged cast base, heavy duty construction
  • 10,000 displayed counts in any of (2) weight units (specify with order)

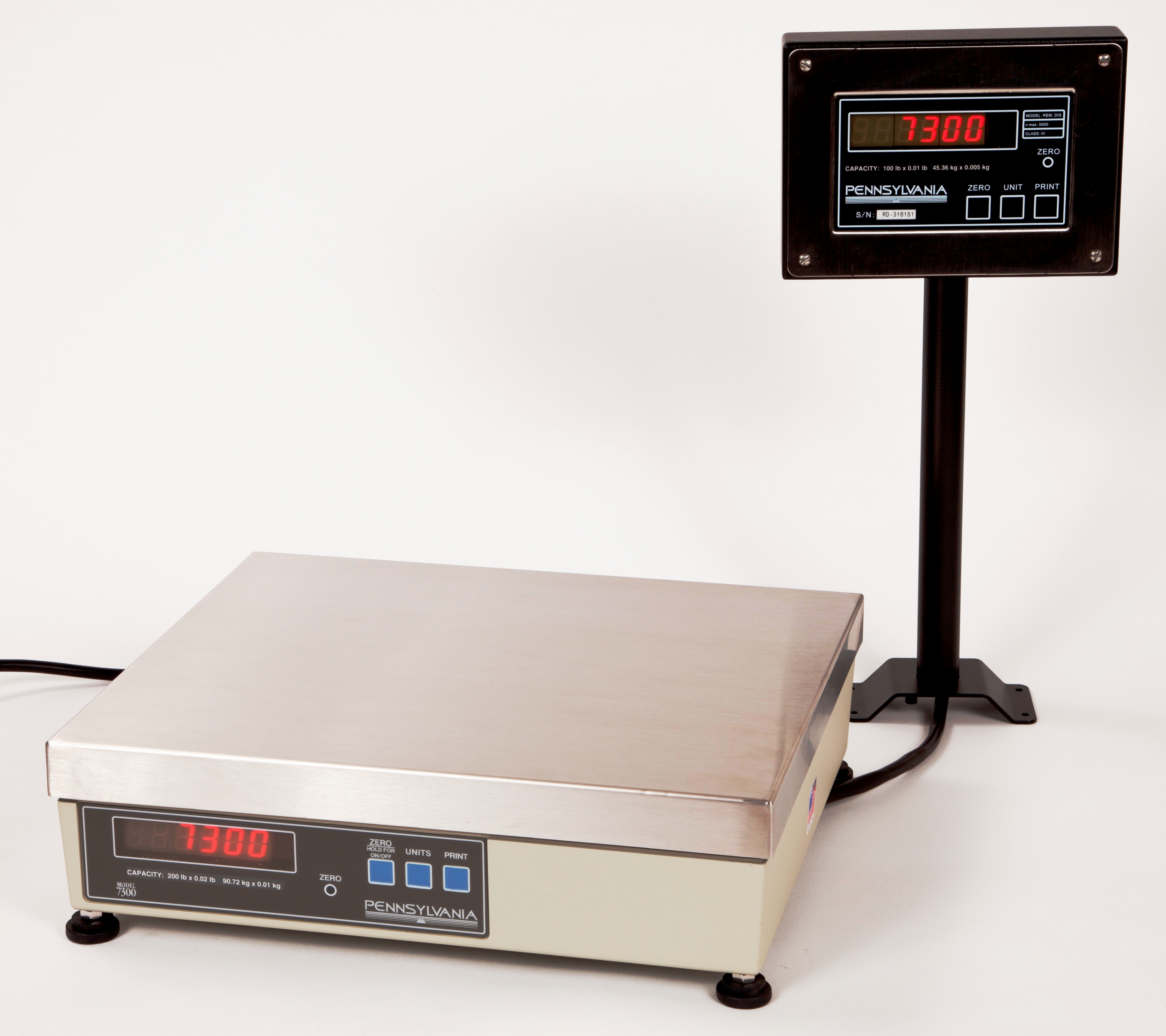

  • Remote display connector for dual displays with or without buttons
  • Programmable RS-232 serial data interface standard
  • 2 standard weight units can be provided as Primary and Secondary units of measure:  Other weight units & resolutions including Lb/Oz—can be specified with order
  • 220/230 Volt Power – NC
  • DUAL/TRIPLE RANGING – BY MENU SETTING (specify ranges, non-COC) – NC
  • UPS ONLINE, FedEX, Custom output string  – Standard with scale
  • SAE SPECIAL APPLICATIONS – Many standard or optional special operational features can be flashed-in using Serial Data Loader feature – Contact us for additional information
  • Made in Lancaster, PA
  • 4 Year Warranty
